VIBRIOm ex

Vibration Meter, Analyzer and Data Collector in Intrinsically Safe Version

Predictive Maintenance based on condition monitoring starts here.

Expert System

automatic machine fault detection

Plug and Play

don’t bother with settings, just measure

WHERE TO BUY?

MAINTENANCE SWISS ARMY KNIFE

Vibrio M Ex

FFT, Time Waveform
Acceleration, Velocity, Displacement
ISO 10816 standards

Stethoscope
Memory / PC communication
IP65 rating

UNIVERSAL AND TOUGH

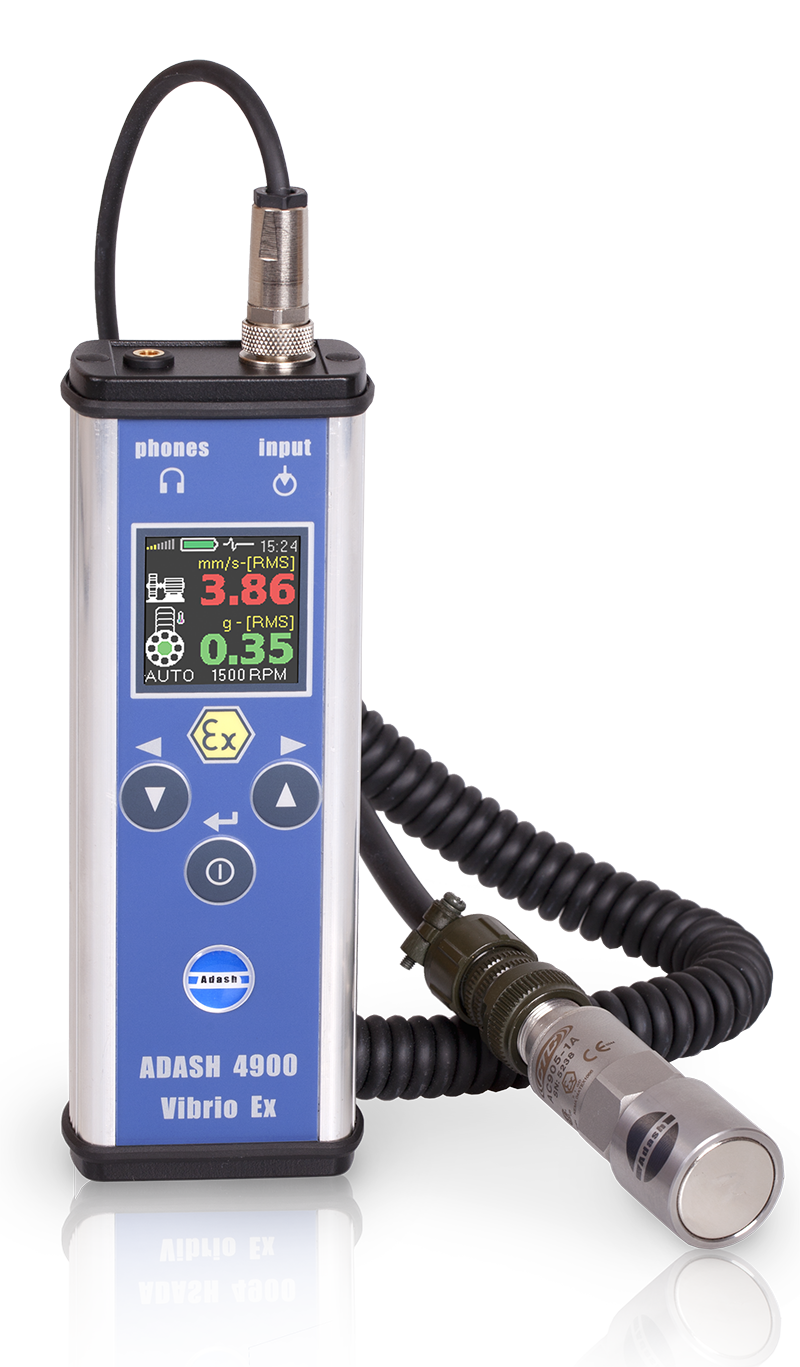

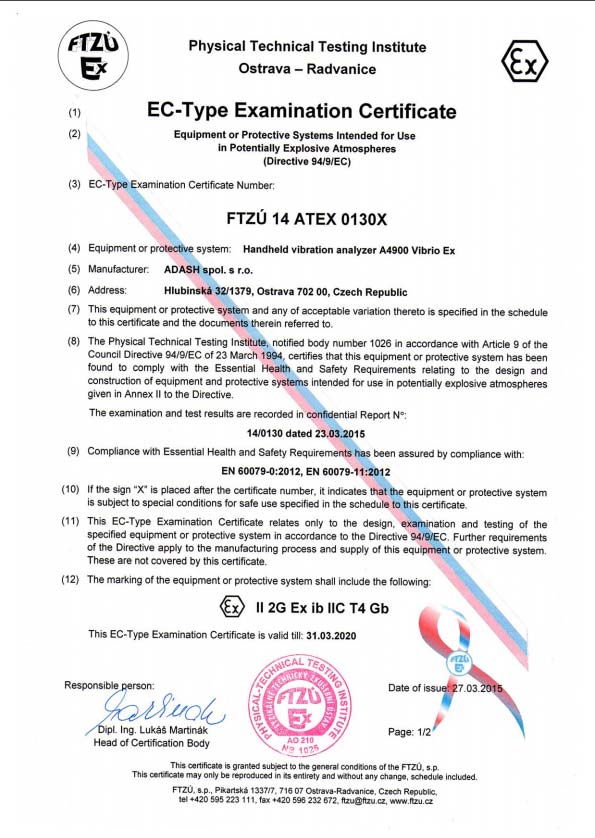

Ex certification: II 2 G Ex ib IIC T4 Gb

[II] Non-mining
[2] Zone 1
[G] Gas atmosphere
[Ex ib] Principle of protection: Intrinsic Safety EN 60079-11
[IIC] Gas group - Acetylene, Hydrogen
[T4] Temperature class 135°C
[Gb] Equipment Protection Level – Zone 1 (high protection)

Heavy duty casing
2 x AA batteries - 7 hours operation
Direct measurement from
proximity probes (optionally)

3.5 Jack
3 buttons operation
Data transfer
through sensor connector

VIBRIO M MEASUREMENTS

All predefined

Overall values - rms

Velocity for a whole machine body vibrations
Acceleration for a bearing vibrations

Automatic speed detection

Overall values - peak

Velocity for a whole machine body vibrations
Acceleration for a bearing vibrations

Spectrum

FFT analysis of vibrations
3 max peaks detection

Time signal

Time waveform for a bearing shocks observation

Demodulation – Envelope value

Frequency Bands

3 frequency bands for highest acceleration signal detection

Displacement

Overall RMS and Peak measurement of vibration displacement

FASIT (Fault Source Identification Tool)

Automatic detection of:
Unbalance
Looseness
Misalignment
Bearing condition

VIBRIO M + free DDS SOFTWARE

Free trending and data analysis software

Collect & Import

Vibrio M Ex along with free DDS software is the easiest start of your predictive maintenance program based on machinery condition.

Collect the data with Vibrio M Ex regularly and import them into DDS software. Follow vibration trends and observe actual condition of your machines.

DDS DOWNLOAD

WHERE TO BUY?

Technical specifications

Vibrio M Ex specifications

Input:

1 x ICP® powered accelerometer

Input range:

60 g PEAK with standard 100 mV/g sensor
e.g. 600 g PEAK with 10 mV/g sensor (sensitivity is adjustable in the device)

Measurements:

Velocity RMS: 10 - 1 000 Hz [mm/s, ips]
Velocity Peak: 10 - 1 000 Hz [mm/s, ips]
Acceleration RMS: 500 - 16 kHz [g]
Acceleration Peak: 500 - 16 kHz [g]
Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples
Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines
Acceleration time: 1 - 16 kHz [g], 2048 samples*
Acceleration spectrum: 1 - 16 kHz [g], 800 lines*
Acceleration Demod-Envelope RMS: 500 - 16 kHz [g]
Acceleration Demod-Envelope Peak: 500 - 16 kHz [g]*
Acceleration Demod-Envelope time: 500 - 16 kHz [g], 2048 samples
Acceleration Demod-Envelope spectrum: 500 - 16 kHz [g], 800 lines, range 400 Hz*
Displacement RMS: 2 - 100 Hz [µm, mil]
Displacement 0-Peak: 2 - 100 Hz [µm, mil]
Displacement Peak-Peak: 2 - 100 Hz [µm, mil]

* available in DDS software for Vibrio

Other functions:

Stethoscope for listening machine (bearing) noises

Memory:

4 MB for data:
120960 overall values
or 900 measurements of 800 line spectra
or 2048 sample time signals

Data storing:

Off-Route Route with DDS software (free download)

Interface:

USB 3.0, 2.0 compatible

Software:

Free version of DDS software (limited database size)

Display:

Colour graphic OLED display 128x128 pixels,
diagonal 1.5“ (38 mm)

Output:

1 x AC signal 8 Ω / 0,5 W for external headphones
(signal listening)

Power:

2 x AA 1.5V batteries
(alkaline, NiMH, Lithium - 8 hours of operation)

Temperature:

Operating: -5°C to 55°C

Dimensions:

150 x 60 x 35 mm

Weight:

330 g including batteries (without cable, sensor and magnet)
540 g including batteries, cable, sensor and magnet

Ex certification:

[II] Non-mining
[2] Zone 1
[G] Gas atmosphere
[Ex ib] Principle of protection: Intrinsic Safety EN 60079-11
[IIC] Gas group - Acetylene, Hydrogen
[T4] Temperature class 135°C
[Gb] Equipment Protection Level – Zone 1 (high protection)

Accessories:

vibration sensor
coiled cable to connect vibration sensor
magnetic base for vibration sensor
headphones with 3.5 mm jack
USB cable
measuring tip for manual pressure on the sensor
transport case
USB flash drive with the manual
