A3800 – Online vibration monitoring system

The A3800 is a compact size on-line monitoring and diagnostic system. Every factory has some critical machines on which the whole production rely on. Such a machinery should not be checked by portable devices on regular basis but they should be monitored continuously in order to know their “health” anytime. Information about vibration and related process values such as temperature, gives you and advantage of planned machinery repairs and decreases unexpected shut downs which are extremely expensive for your factory.

SCALABLE ON DEMAND

A3800

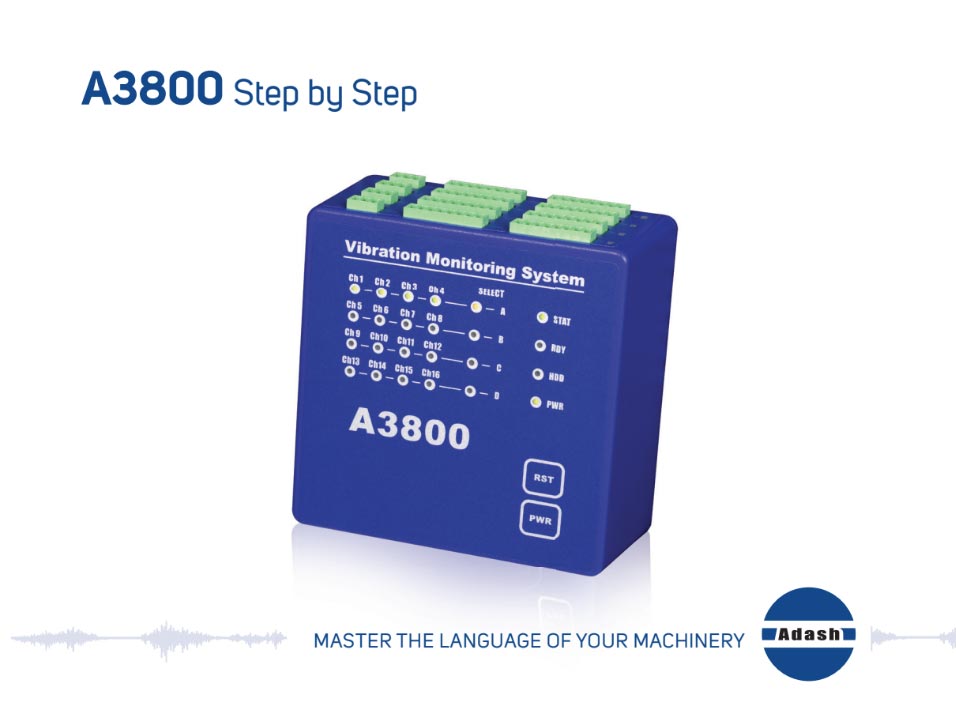

A3800 top panel

4, 8, 12 or 16 channels available
Upgradable from 4ch to 8ch and more just via email
Each group of 4ch has one Tacho / speed probe input
Same number of DC channels for process values available
Individual groups of 4 channels are multiplexed

Collect data with DDS

A3800 + DDS software

A3800 measurement setting has never been easier. Create your machinery and measurement points structure in DDS software, assign A3800 device and start the data collection. Data from the A3800 into your PC can go through Ethernet or Wi-Fi network.

Analyze with Virtual Unit

A3800 + Virtual Unit

A3800 unit can be also used as a powerful multichannel analyzer. The setting and control is made by VA5 Pro - Virtual Unit software (free download).

A3800 top panel

Application scheme

Online vibration monitoring

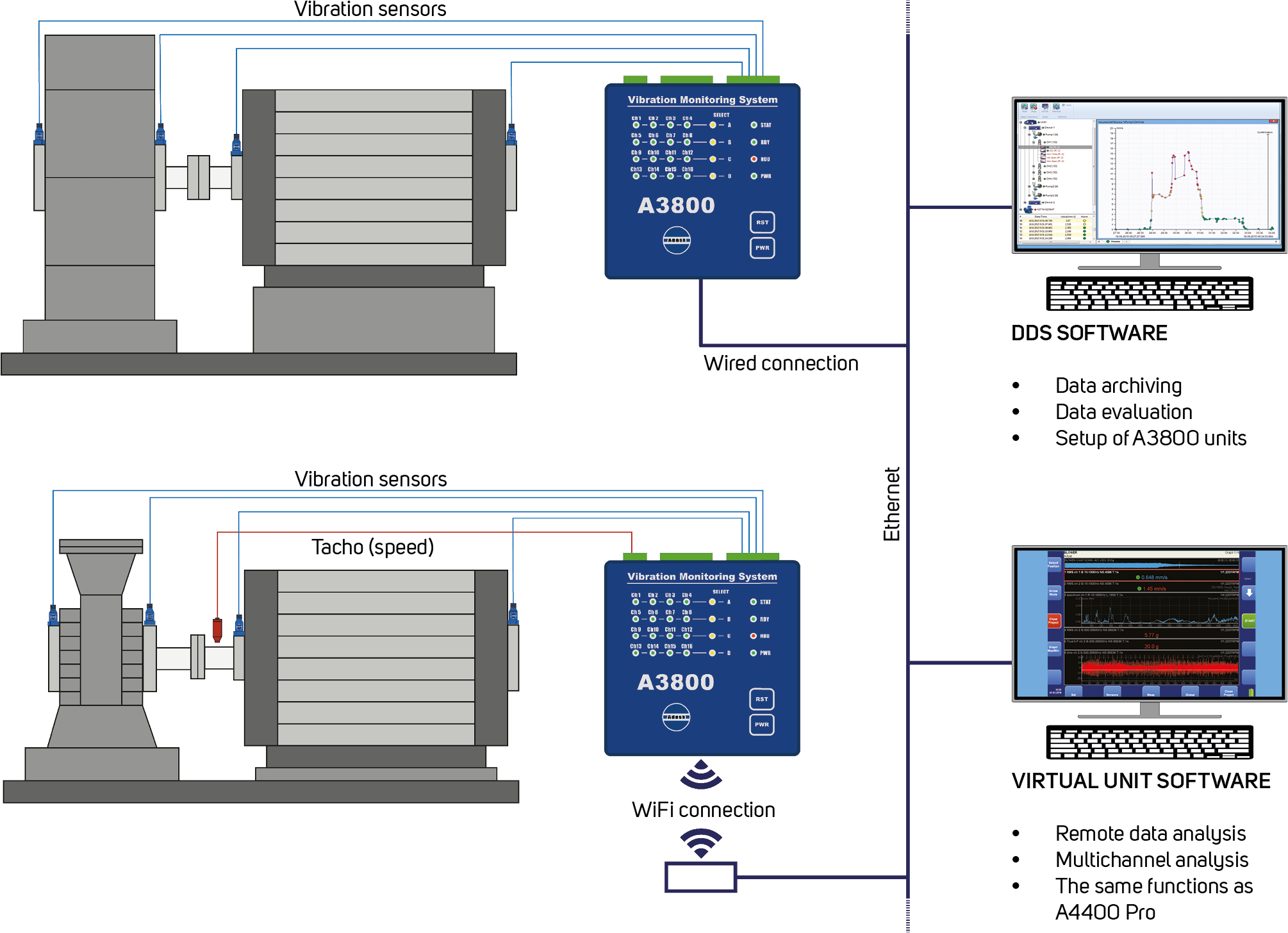

A3800 application scheme

Technical specifications

A3800 specifications

Input channels AC:
4 - 16 AC, ICP® power supply on/off
input impedance 100kΩ
integration single, double
high pass filter 1 Hz - 12800 Hz
low pass filter 25 Hz - 25600 Hz
Input channels DC:
4 - 16 DC for process values
input impedance 100 kΩ (VDC), 250 Ω (mADC)
TACHO inputs:
1 - 4 independent TACHO for external trigger
speed range 0,8 Hz - 1000 Hz
Input range:
AC +/- 12 V peak-peak
DC +/- 24 V or 4 - 20 mA
TACHO +10V
AD conversion:
24 bit, 64 bit double floating point internal signal processing
No AutoGain function!
Dynamic range S/N:
120 dB
Frequency ranges:
max. 25,6 kHz (16 Ch, 65,5 kHz sampling)
Sampling mode:
Fully simultaneous for group of 4 channels
FFT resolution:
Min. 100 lines
Max. 25 600 lines
Processor:
Intel Atom E3815 - 1.46 GHz
Memory RAM:
2 GB
Internal hard drive:
SSD 32 GB
Data acquisition:
Overall values
Time signals
FFT real time analysis
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
order analysis
user band pass analysis
RPM measurement
DC measurement
Orbit measurement
Speed measurement
Signal Recorder:
64 kHz sampling frequency
4 Ch memory consumption 3 GB/hour
4 Ch total recording - 10 hours
Trigger:
free run, TACHO, external (voltage)
Communication:
Ethernet 1GB RJ45
Wi-Fi
Temperature range:
-10˚C to +50˚C
Power:
DC 12 V
Case:
aluminium box
Size & Weight:
117 x 117 x 58 mm (without connectors)
800 g
