VIBRIOm

Vibration Meter, Analyzer and Data Collector in One

Predictive Maintenance based on condition monitoring starts here.

Expert System

automatic machine fault detection

Plug and Play

don’t bother with settings, just measure

MAINTENANCE SWISS KNIFE

Vibrio M

A4300 top
FFT, Time Waveform
Acceleration, Velocity, Displacement
ISO 10816 standards
8 hours of operation
IR thermometer
Stethoscope
Memory / USB communication
LED Stroboscope

VIBRIO M MEASUREMENTS

All predefined

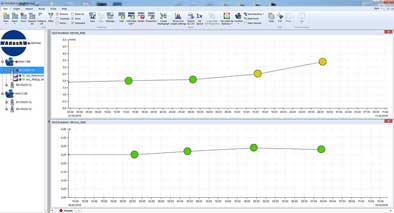

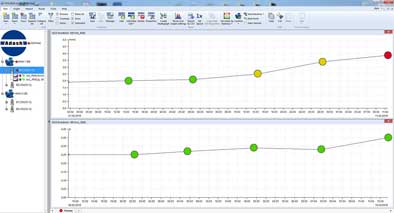

VIBRIO M + free DDS SOFTWARE

Free trending and data analysis software

A4900 vibrio m dds

Collect & Import

Vibrio M along with free DDS software is the easiest start of your predictive maintenance program based on machinery condition.

Collect the data with Vibrio M regularly and import them into DDS software. Follow vibration trends and observe actual condition of your machines.

UNIVERSAL AND TOUGH

Ready for industry

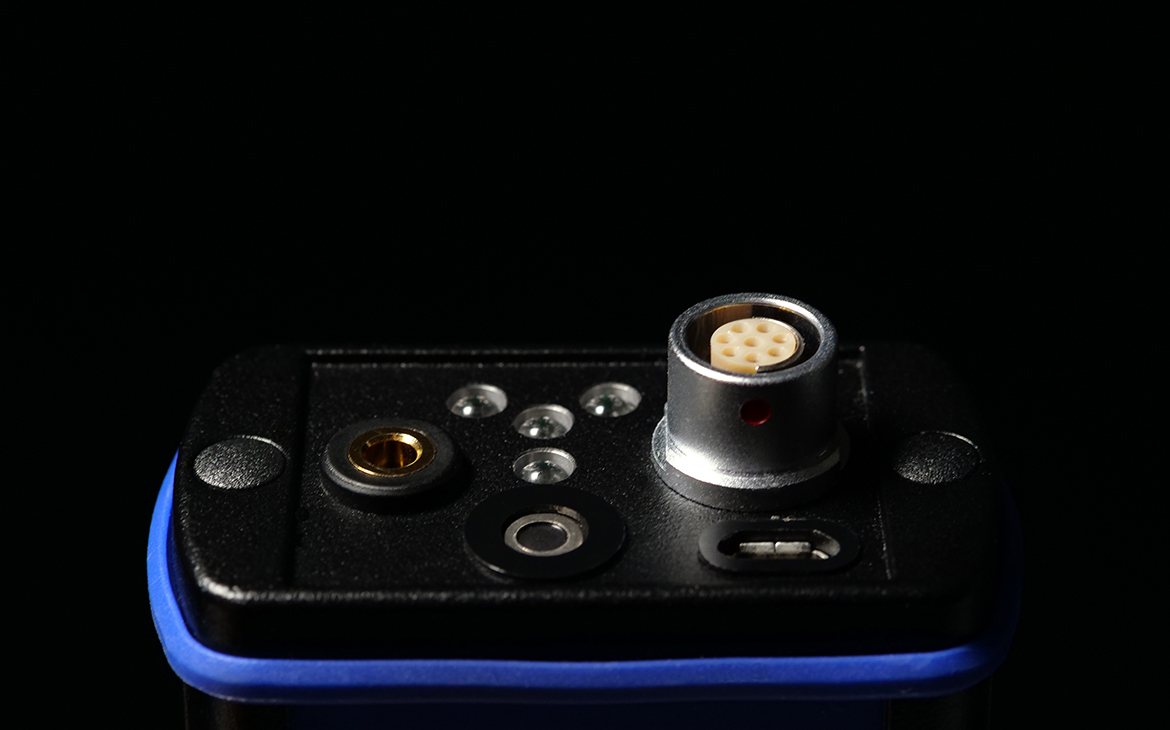

A4900 top
Heavy duty casing
LED flashlight
Direct measurement from
proximity probes (optionally)
Unbreakable connector
Micro USB data transfer
3.5 Jack
3 buttons operation

Technical specifications

Vibrio M specifications

Input:
1 x ICP® powered accelerometer
Input range:
60 g PEAK with standard 100 mV/g sensor
e.g. 600 g PEAK with 10 mV/g sensor (sensitivity is adjustable in the device)
Measurements:
Velocity RMS: 10 - 1 000 Hz [mm/s, ips]
Velocity Peak: 10 - 1 000 Hz [mm/s, ips]
Acceleration RMS: 500 - 16 kHz [g]
Acceleration Peak: 500 - 16 kHz [g]
Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples
Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines
Acceleration time: 1 - 16 kHz [g], 2048 samples*
Acceleration spectrum: 1 - 16 kHz [g], 800 lines*
Acceleration Demod-Envelope RMS: 500 - 16 kHz [g]
Acceleration Demod-Envelope Peak: 500 - 16 kHz [g]*
Acceleration Demod-Envelope time: 500 - 16 kHz [g], 2048 samples
Acceleration Demod-Envelope spectrum: 500 - 16 kHz [g], 800 lines, range 400 Hz*
Displacement RMS: 2 - 100 Hz [µm, mil]
Displacement 0-Peak: 2 - 100 Hz [µm, mil]
Displacement Peak-Peak: 2 - 100 Hz [µm, mil]

* available in DDS software for Vibrio
IR temperature measurement:
From -70˚C to +380˚C (-94˚F to +716˚F)
Other functions:
LED stroboscope (0.17-300 Hz, 10 - 18 000 RPM)
LED torch
Vibration stethoscope
Memory:
4 MB for data:
120960 overall values
or 900 measurements of 800 line spectra
or 2048 sample time signals
Data storing:
Off-Route Route with DDS software (free download)
Interface:
USB 3.0, 2.0 compatible
Software:
Free version of DDS software (limited database size)
Display:
Colour graphic OLED display 128x128 pixels,
diagonal 1.5“ (38 mm)
Output:
1 x AC signal 8 Ω / 0,5 W for external headphones
(signal listening)
Power:
2 x AA 1.5V batteries
(alkaline, NiMH, Lithium - 8 hours of operation)
Temperature:
Operating: -5°C to 55°C
Dimensions:
150 x 60 x 35 mm
Weight:
330 g including batteries (without cable, sensor and magnet)
540 g including batteries, cable, sensor and magnet
Accessories:
vibration sensor, coiled cable to connect vibration sensor, magnetic base for vibration sensor, headphones with 3.5 mm jack, USB cable, measuring tip for manual pressure on the sensor, transport case, USB flash drive with the manual

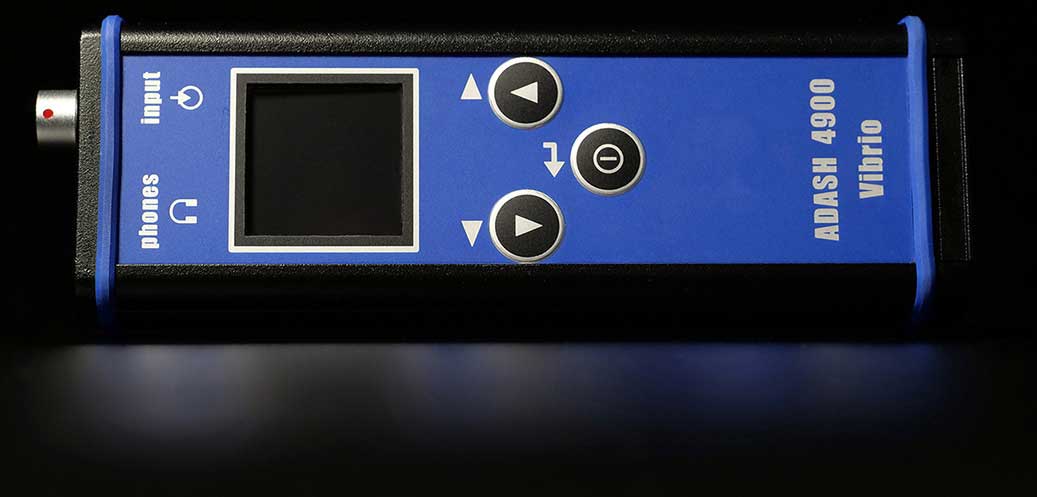

A4900 side
