SIGNAL ANALYZER BOX

4-Channel Pocket Size Vibration Analyzer

Vibration analyzer for less

connect it with your laptop
and be amazed by measurement possibilities

Virtual unit

free software for setting up your measurements

4AC + 4DC + Tacho

all 8 channels plus speed are measured simultaneously

Ideal for teaching purposes

Universities ready

A4404
SAB along with laptop or PC is a great solution for teaching purposes.
Technical Professors around the world appreciates the possibility to show real time vibration measurements on a projection screen.

SERVICE CONTRACTORS NEED

Very portable

A4404

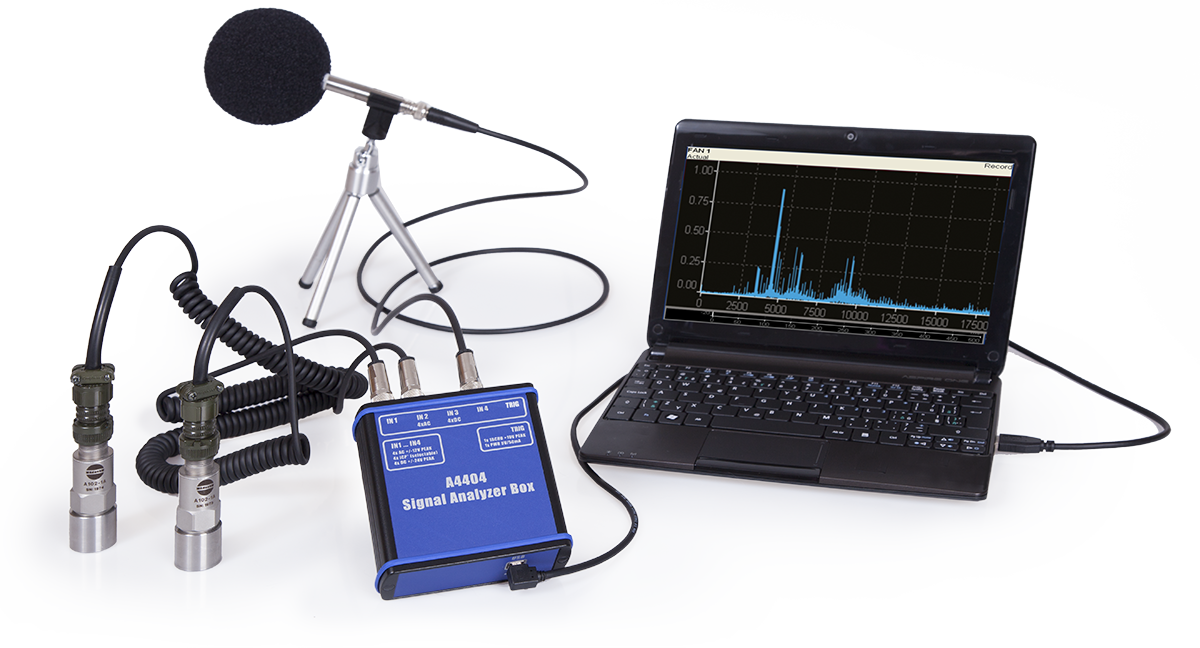

Fully equipped 4 channel vibration analyzer fits into your pocket. If you travel a lot and you don’t want to carry heavy tools with you, then the SAB is the right choice for you. Just connect the SAB to your laptop and make professional vibration analysis on site.

LABORATORY PURPOSES

A4404 SAB

A4404
Laboratory measurements are piece of cake for SAB. Whenever you need to measure any AC or DC signal, just grab a small SAB in your lab.

SMALL MULTICHANNEL

A4404 SAB

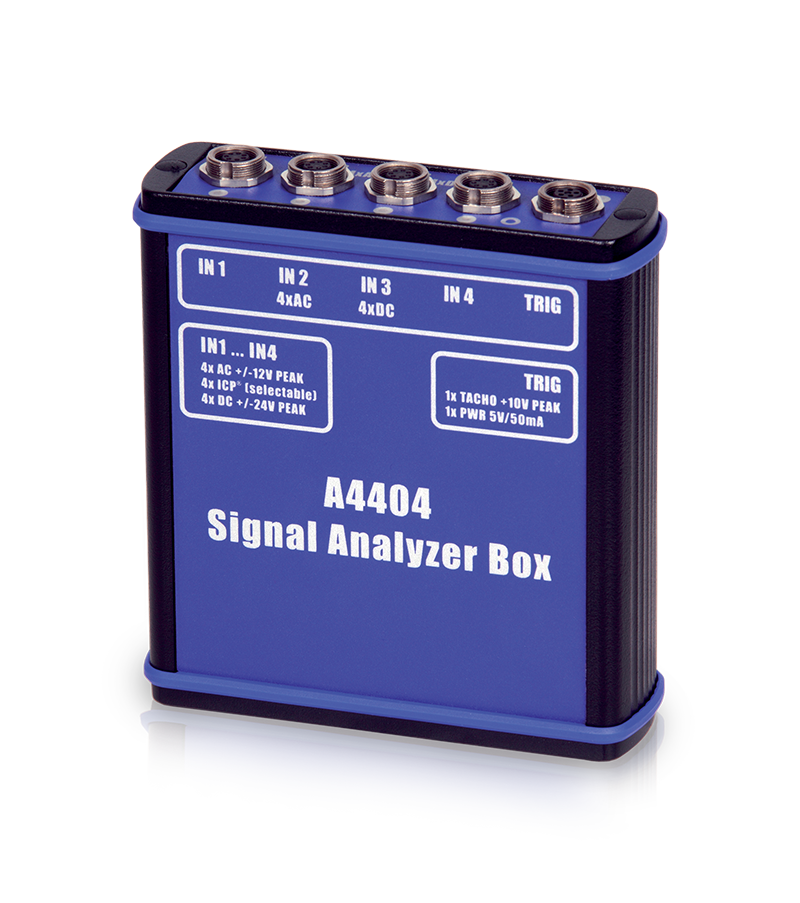

A4404 top
4x AC input – vibrations
4x DC input – process values
1x Trigger input (speed probe)
Triaxial sensor ready
Powered from USB
11 x 11,5 x 3,5 centimeters
350 grams
Robust Push-Pull connectors

SAB modules

A4404

Technical specifications

A4404 SAB specifications

Input channels:
4 x AC, ICP® power supply on/off
4 x DC for process values
1 x TACHO for speed probe / external trigger
Input range:
AC +/- 12 V peak-peak
DC +/- 24V
AD conversion:
24 bit, 64 bit internal signal processing
No AutoGain function!
Dynamic range S/N:
120 dB
Frequency ranges (-3 dB):
Maximum range: 0.35 Hz - 90 kHz (1 Ch, 194 kHz sampling)
Maximum range: 0.35 Hz - 25 kHz (4 Ch, 64 kHz sampling)
Minimum range: 0.35 Hz - 25 Hz (4 Ch, 64 Hz sampling)
Sampling mode:
Fully simultaneous for 4 channels
FFT resolution:
Min. 100 lines
Max. 3 276 800 lines
Measurement modes:
Analyzer - analytical measurements
Data collector - route measurements
Balancer - 1 and 2 plane on site balancing
Recorder - raw signal recording for later post analysis
Stethoscope - listening of the bearing/machine noise
FASIT - expert system for automatic fault detection
Octave analyzer - hearable sound measurement
Bump test - measurement of natural frequencies
ADS - Animated Deflection Shapes (Operating deflection shapes)
Ultrasound - measurement of ultrasound in 30 - 50 kHz range
Processor:
According to the PC
Memory, Route:
According to the PC hard drive
Data processing:
Real time FFT
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
Order analysis
User band pass analysis
RPM measurement
DC measurement
Orbit measurement
Signal recorder:
3 GB/hour of memory consumption with 64 kHz sampling frequency measured on all 4 Channels
Trigger:
Manual, External, Signal level, Time
Speed change, Time interval
Interface:
USB 2.0, 3.0 compatible
Temperature range:
-10˚C to +50˚C
Power:
USB powered
Case:
Aluminium - heavy duty
Size & Weight:
110 x 115 x 35 mm, 350 g
Minimum PC requirements:
CPU : Intel Atom 1.66GHz
RAM: 1GB RAM
HDD: 160GB
USB full speed 1.1 or 2.0
Languages:
English, Spanish, German, French, Portuguese, Russian, Czech, Hungarian, Polish, Romanian, Thai
