Adash A4910 Lubri

LUBRI

Monitoring and Control of Lubrication Process
+ Vibration Data Collector

Saves your bearings

assures that your bearing is well greased

Lubrication optimization

add only necessary amount of grease into a bearing

Data collector

measure, store and trend bearing
and whole machine body vibrations

GREASING UNDER CONTROL

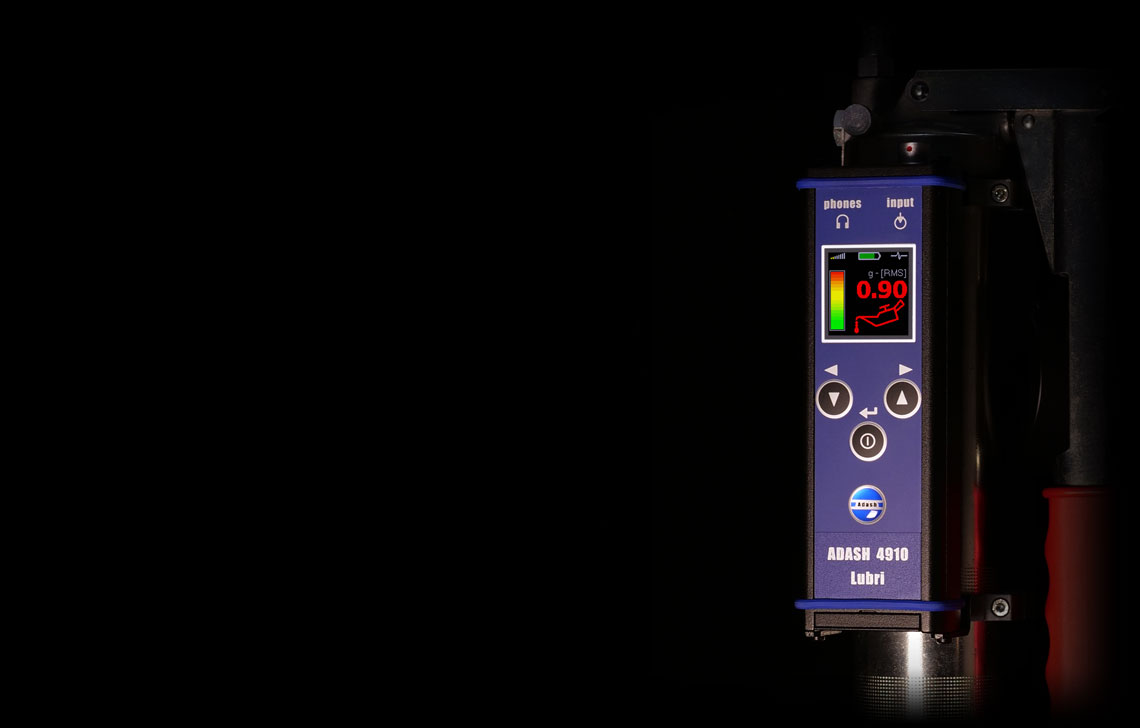

A4910 Lubri

A4910 Lubri

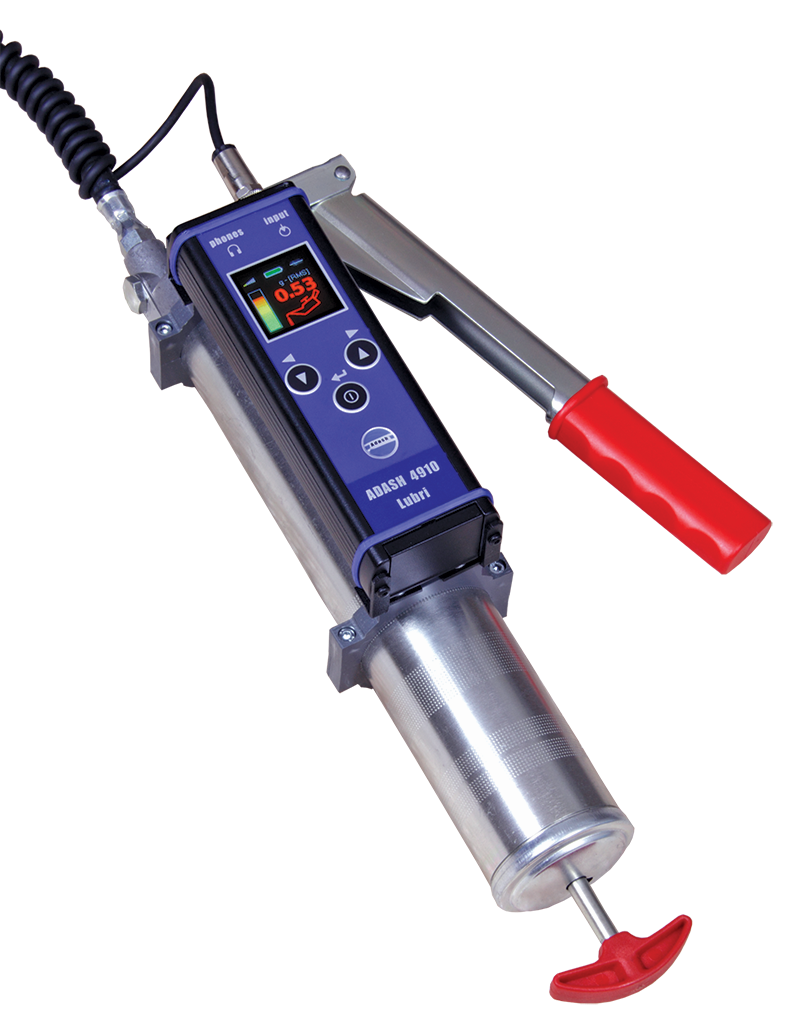

Lubri measures actual bearing vibration once the sensors is mounted on the bearing house. Keep pumping the grease and see the vibration value going down. Bearing is well greased once the value is not decreasing anymore. Extend your bearings lifetime as simply as this!

LUBRI MEASUREMENTS

All predefined

LUBRI + free DDS SOFTWARE

Free trending and data analysis software

A4910 Lubri dds

Collect & Import

Lubri can measure and store two basic measurements. Acceleration in g for the bearing condition and Velocity in mm/s (or ips) for the whole machine body condition.

Collect the data with Lubri regularly and import them into free DDS software. Follow vibration trends and observe the actual condition of your machines.

Technical specifications

Lubri specifications

Input:
1x ICP® powered accelerometer with 100 mV/g sensitivity
Output:
1x AC signal 8 Ω / 0,5 W for external headphones (signal listening)
Measurements:
Acceleration RMS 500 - 16 000 Hz [g]
Acceleration Peak 500 - 16 000 Hz [g]
Velocity RMS 10 - 1 000 Hz [mm/s, ips]
Velocity Peak 10 - 1 000 Hz [mm/s, ips]
Acceleration frequency bands 500-1 500Hz, 1 500-5 000Hz, 5 000 - 16 000 Hz [g]
Memory:
4 MB
Data storing:
Off-Route
Route with DDS software (free download)
Interface:
USB 3.0, 2.0 compatible
Software:
Free version of DDS software (limited database size)
Display:
Colour graphic OLED display 128x128 pixels, diagonal 1.5“ (38 mm)
Power:
2 x 1,5V (AA alkaline batteries) or 2 x 1,2V (NiMH AA rechargeable batteries)
Dimensions:
150 x 60 x 35 mm
Weight:
330 g including batteries (without cable, sensor and magnet)
